SHACMAN M3000S 6×4 tractor truck
SHACMAN M3000S 6×4 tractor truck Specifications
- Dimension: 6,775*2500*3,560
- Weight (KG): 9,600 kg
- Axle: 7.5tons
- King Pin: 2 inches (50#) or 3.5 inches (90#)
- Landing Gear: Manual two-speed
SHACMAN M3000S 6×4 tractor truck Feature
Strong power output
Equipped with Weichai WP12 engine, power 375-430 horsepower, maximum torque 2100 Nm, with Fast 12-speed gearbox, to ensure efficient power transmission, suitable for long-distance heavy-load transportation.

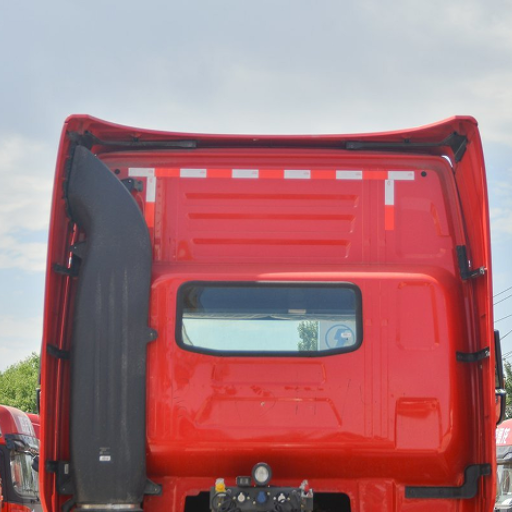

Excellent load-bearing capacity
With a 4×2 drive configuration and a single 10T–13T rear axle, the truck is lightweight and agile, perfect for navigating city streets and smaller job sites with ease.

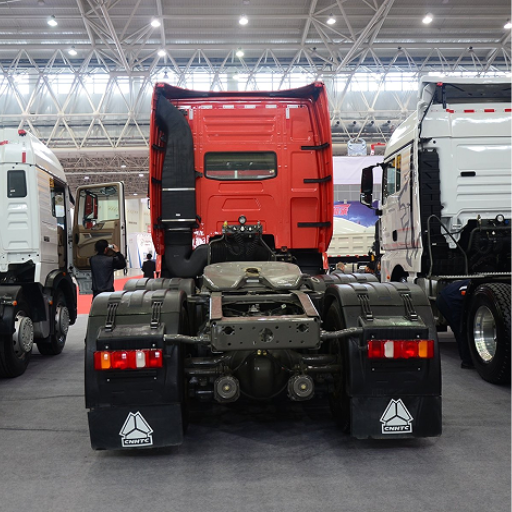

Durability and comfort
The frame is made of high-strength steel, with strong fatigue resistance and adaptability to complex road conditions; the cab is equipped with four-point airbag suspension and ergonomic seat to reduce long-distance driving fatigue and improve operating comfort.
SHACMAN M3000S 6×4 tractor truck Datasheet
The SHACMAN M3000S 6×4 tractor data sheet outlines its specifications: Equipped with Weichai WP12 engine, 375-430 horsepower, matched with Fast 12-speed gearbox. 6×4 drive, 7.5 tons front axle, 16 tons × 2 rear axles, total weight 25,000 kg. Weight is about 9,600 kg, dimensions are about 6775×2550×3560 mm. Equipped with 2-inch or 3.5-inch traction pins, 28-ton manual outriggers. Comfortable cab with air conditioning and four-point suspension, suitable for heavy-duty logistics
| Dimension | 8354*2490*3450mm | |
|---|---|---|
| Carriage Dimensions | 5600*2300*1130mm | |
| Wheel base | 3775+1400mm | |
| Cylinder quantity | 6 | |
| Fuel tank | diesel | |
| Tank capacity | 300L | |
| Horsepower | 336hp(Optional) | |
| Maximum output | 250kw | |
| Rated speed | 2200rpm | |
| Tire quantity | 10 | |
| Displacement | 9.726L | |
| Steel thickness of Carriage | Floor: 8mm, Side:6mm | |
| Hydraulic Lift of Carriage | Ventral lift | |
| Color | optional | |
| Transmission | 10 forward, 2 reverse | |
| Steering | hydraulic steering with power assistance | |
| Front axle | STR | |
| Rear axle | ST16 | |
| Cab | standard cab, one berth | |
| Rim/Tires | 12.00-20 bias tire |
Applications of SHACMAN M3000S 6×4 tractor truck
Long-distance cargo transportation
Equipped with Weichai WP12 engine (375-430 horsepower) and 16-ton double rear axle, it can carry more than 40 tons and is suitable for long-distance transportation of containers or bulk cargo, improving logistics efficiency.
Construction material traction
Strong torque (2100 Nm) and MAN technology rear axle support traction of heavy construction material trailers such as sand, gravel, cement, etc., to meet the needs of the construction supply chain.
Cold chain logistics
Fast 12-speed gearbox and comfortable cab (with air conditioning, four-point suspension) ensure stability and driver efficiency in long-distance transportation of refrigerated goods.
Port container transportation
High load capacity and 2-inch/3.5-inch towing pin design are suitable for standard container trailers, optimizing short-distance efficient transportation from port to inland.
Energy equipment transportation
Lightweight body and high-strength steel frame support traction of overweight cargo such as wind turbine blades or oil and gas equipment, ensuring safety and durability under complex road conditions.
Unleash Efficiency with SHACMAN M3000S 6×4 tractor truck
SHACMAN M3000S 6×4 tractor, the superhero of the logistics industry! With a 430-horsepower Weichai heart, it can easily pull 40 tons, and it is a great choice for long and short distances! The MAN technology rear axle is as stable as a mountain, and the 12-speed gearshift is very smooth. The cab is super spacious, and the airbag suspension makes sitting comfortable, and you won’t feel tired even if you drive for a whole day! Low fuel consumption, strong power, economical and powerful.
