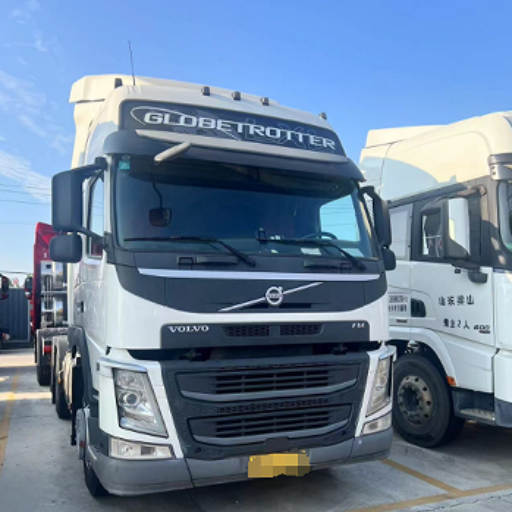

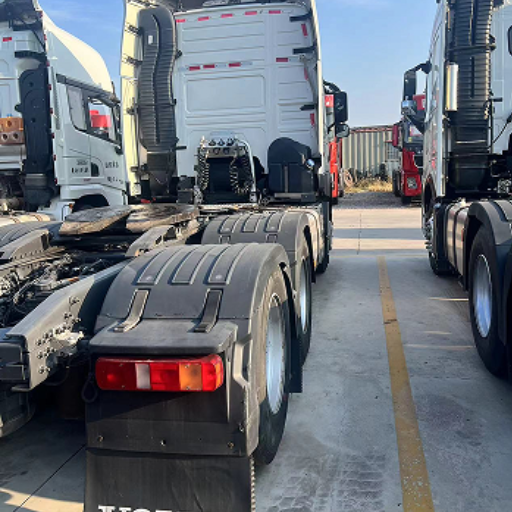

VOLVO FM 460 6×4 tractor truck
The Volvo FM 460 6×4 tractor is a high-performance truck designed for heavy-duty transport, suitable for long-distance and complex road transport. It is equipped with a D13A460 engine, with an output of 460 horsepower and a torque of up to 2,300 Nm, which meets Euro VI emission standards and has high fuel efficiency. It is equipped with an I-Shift 12-speed automatic transmission, which has smooth gear shifting and adapts to various working conditions. The vehicle adopts a high-strength steel frame, with a front axle load of 9 tons, a rear axle load of up to 26 tons, and a total traction weight of up to 44 tons.
Dump Truck Specifications
- Dimension: 6,800*2500*3,200
- Weight (KG): 8,500-9,500 kg
- Axle: 6×4 (front axle steering, rear double-axle drive)
- King Pin: Commonly 2 inches or 3.5 inches
- Landing Gear: Two-speed manual
VOLVO FM 460 6×4 tractor truck Feature
Volvo FM 460 6×4 is equipped with D13A460 engine, outputting 460 horsepower and peak torque of 2300 Nm. Combined with I-Shift 12-speed automatic transmission, the power transmission is smooth and fuel economy is optimized. It matches Euro VI emission standards, and SCR post-treatment technology effectively reduces emissions, which is suitable for long-distance heavy-load transportation.
It adopts high-strength steel frame, with a front axle load of 9 tons, a total load of 26 tons for the rear double axle, and a total traction weight of more than 44 tons. Equipped with RTS2370A heavy-duty drive axle, the speed ratio can be selected from 3.08 to 4.13, ensuring excellent grip and stability under complex road
The cab provides a Globetrotter high roof option, four-point airbag suspension shock absorption effectively reduces vibration, and is equipped with a multi-function digital instrument panel and ergonomic seat. In terms of safety, it integrates EBS electronic braking system and ACC adaptive cruise control to improve the safety and comfort of long-distance driving.
FM 460 volvo Datasheet
Equipped with D13A460 engine, 460 horsepower, torque 2300 Nm, Euro VI emission; I-Shift 12-speed gearbox, total traction weight can reach 44 tons. The front axle carries 9 tons, the rear double axle carries 26 tons, and the wheelbase is about 3200-3900 mm. The curb weight is about 8500-9500 kg, equipped with 315/80R22.5 tires. The cab can be equipped with Globetrotter high roof, EBS and ACC safety systems.
| Category | Specification |
|---|---|
| Condition | New |
| Emission Standard | Euro 6 |
| Gross combined weight | about 44 tons |
| Engine model | D13K460 |
| Torque | 2300 Nm (1000-1400 rpm) |
| Displacement | 12.8 liters |
| Cylinders | 6-cylinder in-line |
| Fuel type | diesel |
| Engine brake | VEB+ (optional, maximum braking power about 300 kW) |
| Transmission type | I-Shift automatic transmission |
| Gear | 12 forward gears, 4 reverse gears |
| Front axle capacity | 9 tons |
| Fuel tank capacity | 150-900 liters (optional) |
| Wheels | 10 wheels |
| Tires | 315/80R22.5 (common specifications) |
| Trailer compatibility | compatible with standard semi-trailers, traction pins 2 inches or 3.5 inches |
| Trailer Compatibility | Can take deep pin trailers |
Applications of FM 460 volvo
Equipped with a 460-horsepower D13K engine and 2,300 Nm torque, combined with an I-Shift 12-speed transmission, it can efficiently tow a 44-ton container trailer, suitable for long-distance logistics from ports to inland areas.
The rear axle capacity of 26 tons (13 tons × 2) and the 9-ton front axle design ensure the stability of towing heavy construction material trailers such as sand, gravel, and cement, meeting the needs of the construction supply chain.
Cold chain logistics distribution
The fuel tank capacity of up to 900 liters and the comfortable cab (with air conditioning and four-point suspension) support long-distance transportation of refrigerated goods, ensuring the freshness of goods and driver efficiency.
The high-strength frame and 6×4 drive layout are suitable for trailer transportation of overweight energy equipment (such as wind turbine blades), providing reliability and traction under complex road conditions.
The 315/80R22.5 tire and automatic transmission optimize handling, suitable for frequent start-stop cargo distribution in the region, improving fuel economy and ease of operation.
Unleash Efficiency with VOLVO FM 460 6×4 tractor truck
VOLVO FM 460 6×4 tractor, the speed king in the logistics industry! 460 horsepower D13K engine, 2300 Nm torque, 44 tons towing, long and short distances! I-Shift 12-speed gearbox, smooth shifting, 6×4 drive sweeps through rugged roads. 900 liters of fuel tank, 315/80R22.5 tires are as stable as a cow, the cab is super comfortable, and it is a pleasure to drive!
