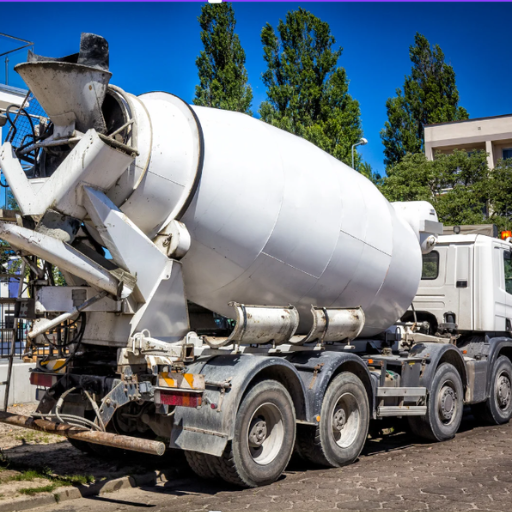

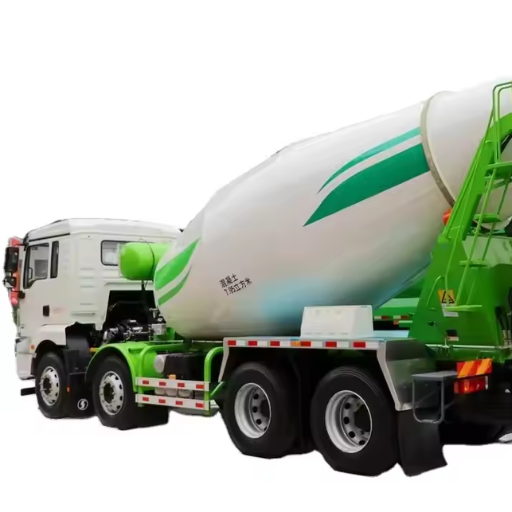

SHACMAN M3000S 8×4 Concrete Mixer Truck
Shaanxi Auto Delong M3000S 8×4 concrete mixer truck is an efficient and durable engineering vehicle, which adopts 8×4 drive mode, has strong load-bearing capacity and improved handling stability. The cab is spacious and equipped with airbag seats and heating function to reduce fatigue during long-distance driving. The M3000S series focuses on lightweight design to reduce fuel consumption. At the same time, it uses high-strength steel and wear-resistant lining to extend service life. It is suitable for various scenarios such as urban construction, highways, and industrial projects.
M3000s Shacman Specifications
- Dimension:10150*2500*3950
- Weight (KG): 14500kg
- Axle: 7.5tons*2
- Up-body Configuration：14 cubic meters
- Gearbox：Manual transmission
SHACMAN M3000S 8×4 Concrete Mixer Truck Feature
8×4 drive, 7.5 tons × 2 front axles, 16 tons × 2 rear axles, total weight 31,000 kg, 14 cubic meters mixing tank can transport large volumes of concrete, meeting the needs of heavy-duty working conditions.
The mixing tank is made of high-strength steel (Q345/520JJ, thickness 5mm, end plate 6mm), with optimized blade design to ensure concrete uniformity, prevent solidification, and is suitable for long-distance transportation.
The cab is spacious, equipped with Grammer airbag seats and seat heating function, and the four-point suspension system effectively reduces shock, reduces long-distance driving fatigue, and improves operating safety.
SHACMAN M3000S 8×4 Concrete Mixer Truck Datasheet
The SHACMAN M3000S 8×4 Concrete Mixer Truck data sheet details its core specifications, highlighting its excellent performance as an efficient concrete transport vehicle
| Parameter | Value |
|---|---|
| Trademark | Shacman |
| Support Motor | Weichai WP12.400E50 |
| Support Motor Rated Power | 294 kW |
| Fuel | Diesel |
| Displacement | 11.596 Liters |
| Maximum Horsepower | 400 hp |
| Gross Vehicle Weight | 31,000 kg |
| Load Capacity | 16,500 kg |
| Payload | 14T (note: approximate, may differ from Load Capacity) |
| Wheelbase | 1800+3775+1400 mm |
| Front/Rear Suspension | 2036/2600 mm |
| Number of Axles | 4 |
| Certification | ISO9000, CCC, TS16949, EEC, RoHS |
| Emission Standard | Euro 5 |
Applications of M3000s Shacman
Equipped with a 14 cubic meter mixing tank and a 400 horsepower engine, it is suitable for supplying large quantities of fresh concrete to high-rise buildings or bridge construction sites to ensure construction continuity.
8×4 drive and 31,000 kg total weight adapt to complex terrain and transport concrete to road or tunnel construction sites to meet high-intensity construction needs.
The high-strength steel tank body (5mm tank wall, 6mm end plate) maintains concrete uniformity, supports factory precast concrete component production, and improves efficiency.
1800+3775+1400 mm wheelbase and four-axle design overcome rugged road conditions and deliver concrete to remote rural infrastructure projects.
14 tons of payload and fast unloading capacity (about 70° inclination) provide timely concrete support for emergency repairs after earthquakes or floods.
The spacious cab with Grammer airbag seat and air conditioning is suitable for long-distance distribution to commercial construction sites, ensuring driver comfort and transportation reliability.
Unleash Efficiency with SHACMAN M3000S 8×4 Concrete Mixer Truck
400 horsepower, 14 cubic meters large tank, 31,000 kg stable load! 8×4 drive runs all over the construction site, 5mm thick tank mixes evenly, with high efficiency. Comfortable cab, Grammer seat, driving is fun!
